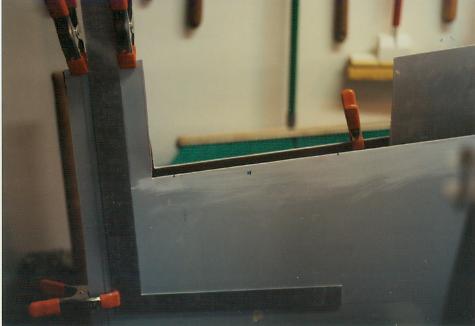

| Aileron and flap cutouts are
squared to the spar centerline. |
|

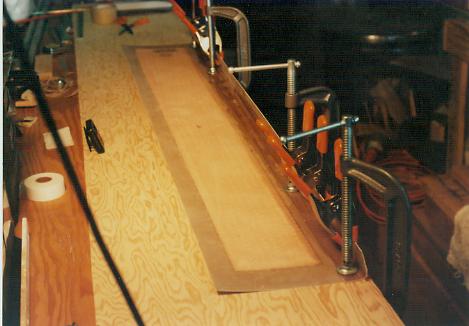

| Bonding the aileron shear web
to the aileron skin. |
|

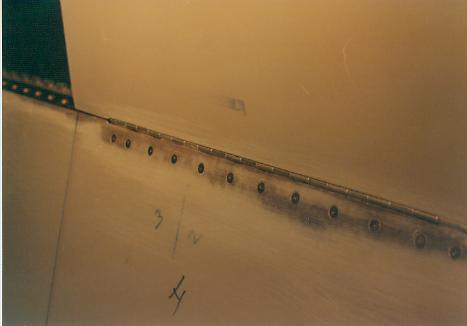

| The completed aileron hinge
installation. |
|

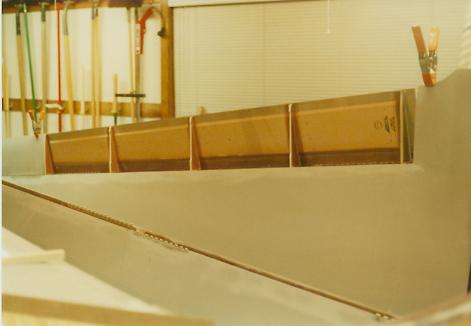

| The right flap fitted in
position on the wing. |
|

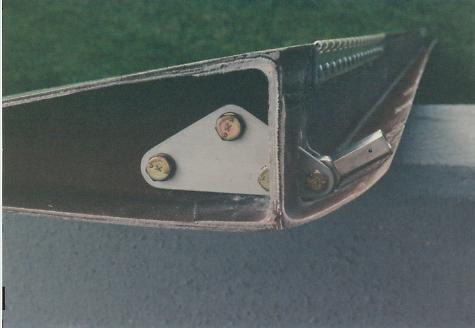

| Close up view of the completed
aileron, inboard end. The rod end bearing attaches to the push/pull
tube in the wing. |
|

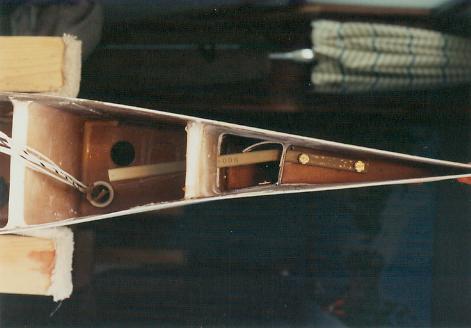

| View of the end of the wing
showing the aileron counterweight arm attached to the aileron. |
|

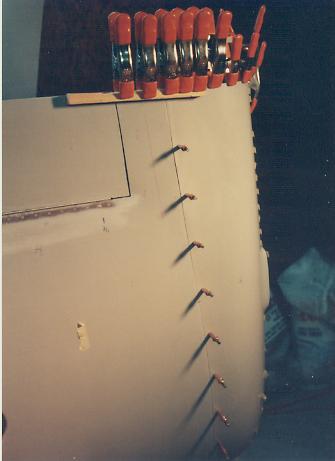

| Bonding the wing tip halves
together. This is done with the pieces attached to the end of the
wing in alignment with the aileron. |
 |
|
|
