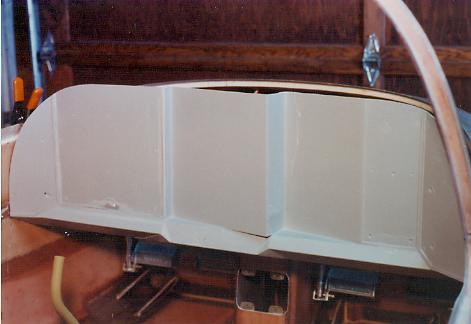

| Initial trimming and fitting
of blank panel in the fuselage. |
|

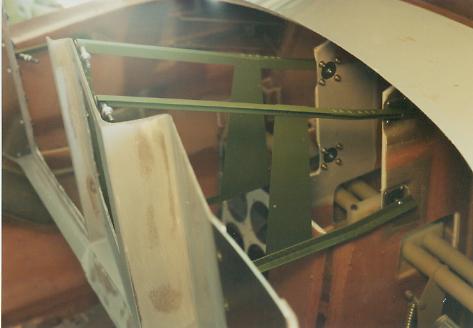

| Bracing that was fabricated to
support the panel and the avionics. |
|
| Temporary flight instrument
installation (using a masonite insert) to check for adequate clearances
behind the panel. |
|
| Instrument panel - All
primary flight and engine instruments are installed. |
|
| The partially completed
instrument panel is fitted in the fuselage. Leg clearance is checked
and rear clearance of all instruments is checked to insure the wind screen
can be installed.
The glareshield has also been fabricated
and fit in place at this point. |
|
| All components being wired
behind the panel. |
|

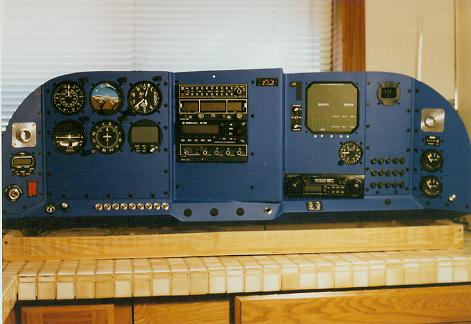

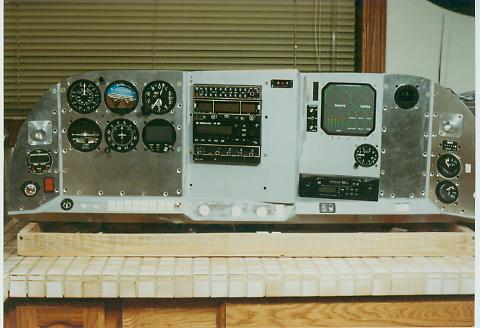

| The completed panel. |
|

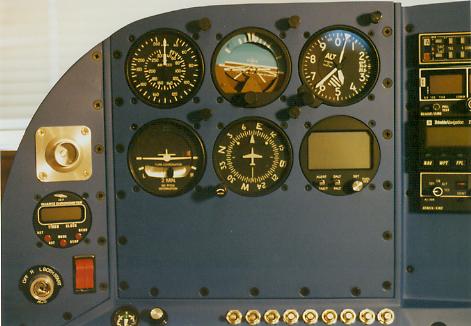

| The basic flight instruments. |
|

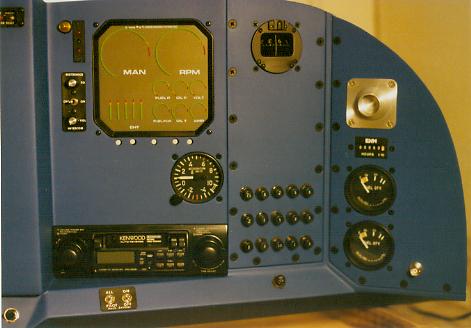

| Engine instrumentation,
circuit breakers, fuel gauges, stereo intercom, accelerometer, and stereo. |
|

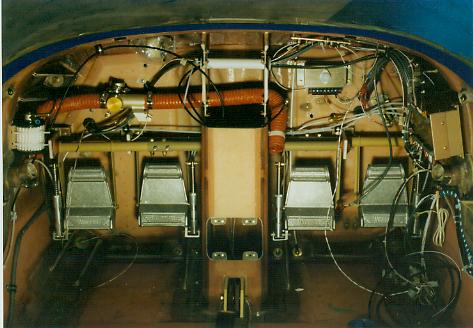

| View behind the instrument
